USB 3.0 394-Channel MADI Interface

The RME MADIface XT was the world’s first USB3 audio interface - and the world’s smallest portable interface that provides access to hundreds of audio channels in a highly portable package. For highest compatibility the XT also features a PCI Express port for connection to External PCI Express cards, providing the fastest interfacing technologies available for maximum channel count and lowest latency.

Three 64-channel MADI I/Os are accompanied by 4 MIDI I/Os, one stereo AES/EBU and a word clock I/O. To bring together the most complete I/O set for live or studio usage, two digitally controlled high-end mic/line preamps, two balanced line outputs and one stereo phones output, all fully 192kHz capable, were included. For perfect desktop operation RME’s (optional) Advanced Remote Control can be connected.

RME MADIface XT Features

196 Input / 198 Output channels

USB3

2 x MADI I/O optical

1 x MADI I/O coaxial

2 x Analogue Mic / Line Preamp Input (XLR/Line TRS)

4 x Analogue Output (Main XLR + Phones)

1 x AES/EBU I/O via breakout cable

1 x MIDI I/O via breakout cable

3 x virtual MIDI I/O via the three MADI I/Os

Call on 07780671404 or email info@bhbroadacst.co.uk

DANTE <> MADI Bridge

MADI is widely used for large-scale digital audio systems such as audio consoles and conversion systems, allowing multiple channels to be carried along a single interface. RedNet D64R provides the link between a Dante Ethernet-based audio system and any MADI / AES10 setup. D64R supports up to 64 channels of both coaxial and optical MADI interfaces and is completely bi-directional, allowing the use of any Dante components including RedNet's high quality interface products with a MADI system — or MADI components with a Dante system.

D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. Connect a Dante network to MADI-based digital consoles, computer cards, converters and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out.

Dual Ethernet ports are provided, with locking etherCON connectors and several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (including retaining clips) on the rear of the unit. Power status is indicated both remotely and on the front panel. The D64R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 64 channels of I/O.

Key Features

Connects a MADI system and a Dante network seamlessly together.

Connect Dante to digital mixing consoles, interfaces and cards that use MADI; or extend a MADI system with RedNet's versatile, superb-quality audio interfaces and connectivity - or any other Dante compatible devices.

Built-in redundancy with dual locking power and etherCON network connectors.

Supports both coax and optical interfaces — connect simply to any MADI equipment.

Slave either the Dante system or MADI streams to an external clock.

Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48kHz) from a MADI system, 32 channels at 96kHz and 16 at 192kHz.

Sample rate conversion (SRC) on each input and output, allowing MADI and Dante systems to operate simultaneously at different sample rates.

Simple 1U rack-mount module with the classic red aluminium faceplate.

RedNet Control and Dante software allow remote routing and control from the audio computer system via a software control panel — no hardware patching required.

Call on 07780671404 or email info@bhbroadacst.co.uk

Thunderbolt™ 2 based disk dock for mounting and editing directly from media disks. It now includes two Thunderbolt™ ports to support daisy chaining. Multidock is a super fast four disk docking solution in a compact rack mount design that lets you insert and remove disks as you need and edit directly from the disks. Blackmagic MultiDock V2 can also be configured for multi disk RAID storage using your computer's disk utility software.

Call on 07780671404 or email info@bhbroadacst.co.uk

The RB-DA6 is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs.

The RB-DA6 has 1 stereo input and 6 stereo outputs. It can also be configured so that 1 mono input can be distributed to 12 outputs by use of a switch which is recessed on the front panel to prevent it being accidentally knocked.

The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others.The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel.

The output gain may be varied from -8dB to 18dB which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively.

Call on 07780671404 or email info@bhbroadacst.co.uk

The ATEN CE624 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters.

In addition, CE624 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable. With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Box Includes:

1x CE624L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE624R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
1x mounting kits

Some surface scratching from rack installation.

Call on 07780671404 or email info@bhbroadacst.co.uk

Key Features

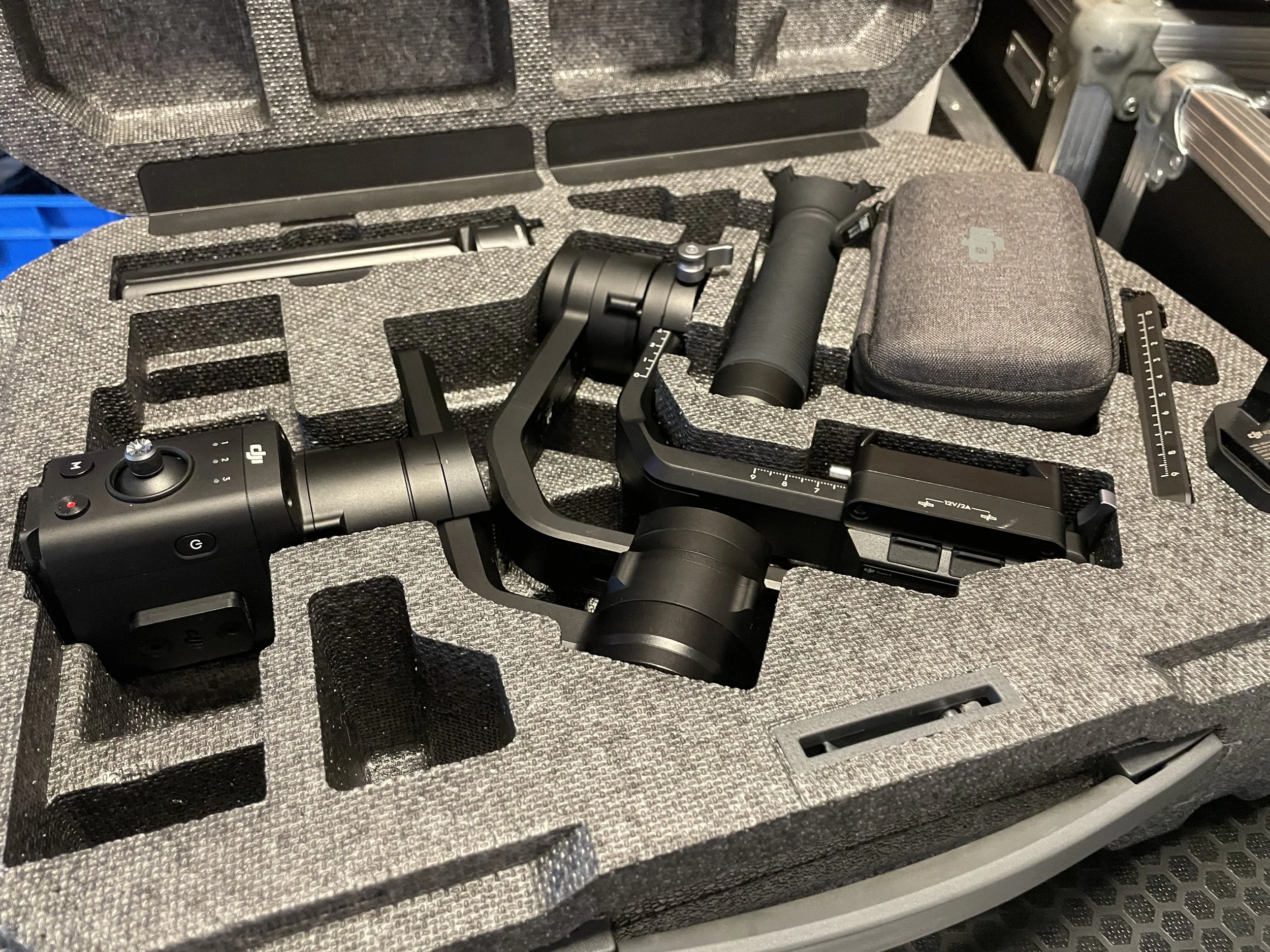

Three-Axis Motorized Gimbal Stabilizer

Holds DSLR or Mirrorless Cameras

Eight-Pound Payload Capacity

Trigger and Mode Buttons for Control

The DJI Ronin-S is more than just a miniaturized version of the larger Ronin gimbal stabilizers; it represents a scalable ecosystem for integrating DSLR and mirrorless cameras into professional-grade workflows. The single-handed form factor of the Ronin-S lends itself to lighter camera payloads, up to eight pounds.

Call on 07780671404 or email info@bhbroadacst.co.uk
